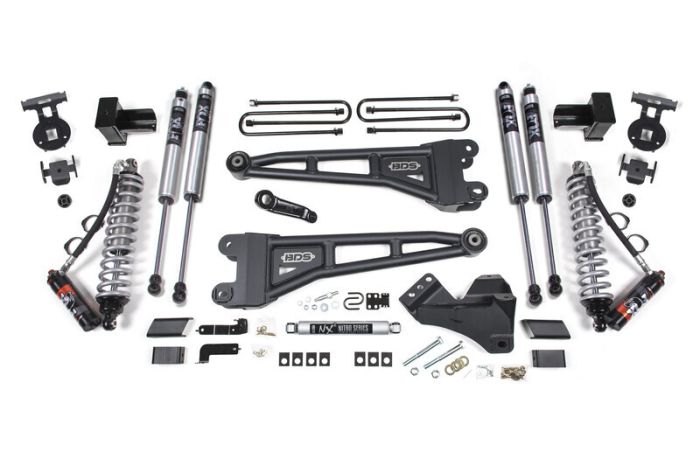

BDS Suspension 5 Inch Lift Kit for DIESEL Ford F-250/F-350 (2020-2022)
Improve the ride on your Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Block Kit
- Included in the base system.
- Made of cast iron for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Features & Benefits
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
| Brand | BDS Suspension |
|---|---|
| Paco SKU | PNT-BDON-00089 |
